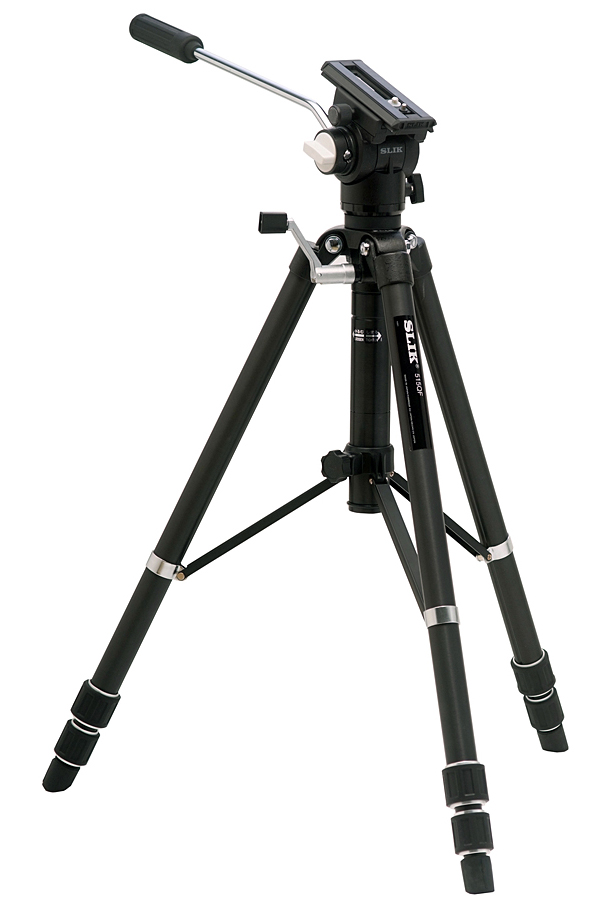

515QF
|
|
Click on picture for enlargement
|
|
|
|
 |
|
Video Series
|
for Video camera
|
|
| FOR USE WITH |
|
|
| DESCRIPTION |
A combination of 505QF leg and Digital Balance Pro head offers great stability for a video camera and a spotting scope.
Sliding quick release plate allows 152mm of sliding range.
Adopted exclusive grease makes smooth movement in wide range temperature (-15°~+50°)
|
| SPECIFICATIONS |
| Folded Length: |
760mm |
| Maximum Operating Height: |
1,655mm |
| Minimum Operating Height: |
380mm |
| Maximum Center Column Ext.: |
180mm |
| Weight: |
3,720g |
| Head Portion Weight: |
1,300g |
| Leg Portion Weight: |
2,420g |
| Leg Lock Type: |
T.L. |
| Leg Tip: |
Rubber |
| How To Mount Camera: |
Q.R.P. |
| Number of Leg Sections: |
3 |
| Shape of Leg Pipe/Tube: |
 |
| Diameter of the first upper leg: |
28mm |
| Type of Center Column Elevation: |
Rack & pinion type |
| Panhead: |
2-way |
| Type of Bubble Level: |
Single bubble level |
| Special Features: |
- |
|
|
