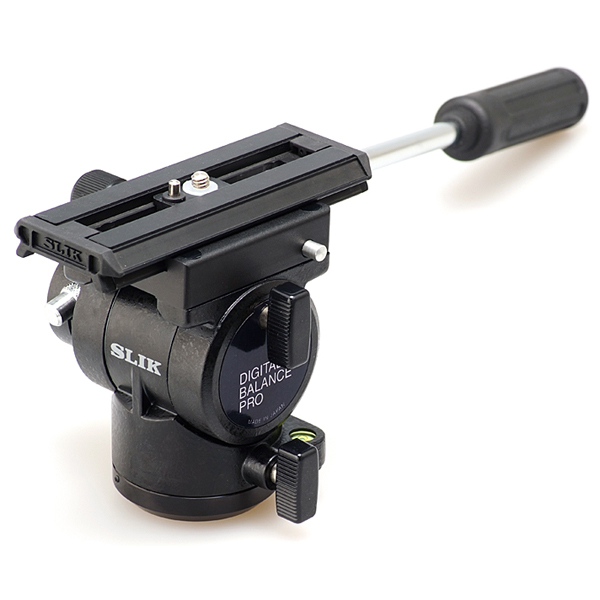

DIGITAL BALANCE PRO
|
|
Click on picture for enlargement
|
|
|
|
 |
|
PAN HEADS
|
Heavy-duty type
|
|
| FOR USE WITH |
|
|
| DESCRIPTION |
152mm range of sliding plate makes easy setting up. Counter spring makes a correction of balance shifting to the leaning to the back or front. Developed for a video camera and a field scope.
|
| SPECIFICATIONS |
| Maximum loading weight: |
5.0 kgs |
| Camera mounting screw: |
U1/4x1 |
| Tripod mounting screw: |
U3/8 . U1/4 |
| Cam Balancer available weight.: |
Approx. 1~2kgs |
| Temperature range: |
–15ºC~+50ºC |
| Tilt range: |
90º (up) and 90º (down) |
| Camera mount plate: |
Rubber |
| Height: |
118mm |
| Weight: |
1,300g |
|
|
